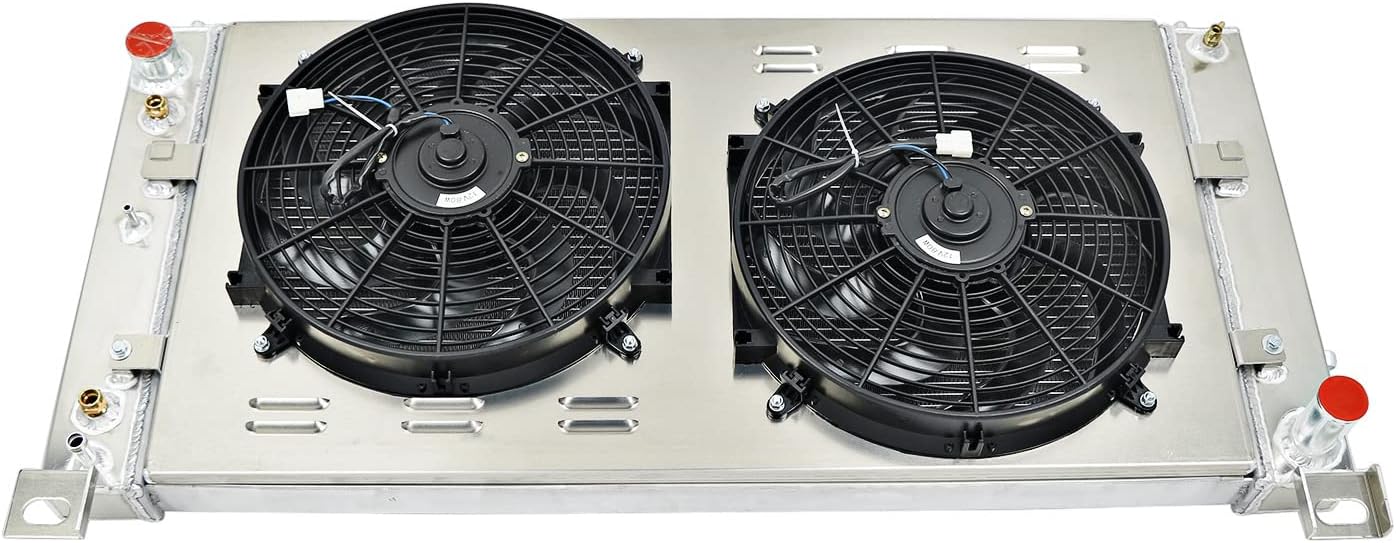

CU2370 4 Row Radiator for 1999-2013 Chevy Silverado/Gmc Sierra 1500/3500 Radiador for 2002-2014 Cadillac Escalade Aluminum Crossflow Radiators Shroud 2x14" Fans Thermostat Relay Kit

Fitment:For 1999-2013 Chevy Silverado 1500/Silverado 2500/GMC Sierra 1500 4.8L 5.3L 6.0L 6.2L V8/4.3L V6For 2001-2010 Chevy Silverado 3500 6.0L V8For 2000-2014 Chevy Tahoe/Suburban 1500 4.8L 5.3L 6.0L 6.2L V8For 2000-2013 Chevy Suburban 2500/Yukon XL 6.0L V8For 2007-2013 Chevy Avalanche 5.3L 6.0L V8For 2002-2006 Chevy Avalanche 1500 5.3L V8For 2007-2013 Chevy Cheyenne 5.3L V8For 2001-2006 GMC Sierra 3500 6.0L V8For 1999-2004 GMC Sierra 2500 5.3L 6.0L V8For 2000-2014 GMC Yukon/Yukon XL 4.8L 5.3L 6.0L 6.2L V8For 2002-2014 Cadillac Escalade 5.3L 6.0L 6.2L V8Package Include1 X 4-Row AA5052 Aluminum Radiator(Includes Radiator Cap)1 X AA5052 Aluminum Shroud2 X 14" Fans(Includes mounting kits)1 X Thermostat Relay KitRadiator DetailsRow Count: 4 RowCore Size: 33.86"H x 17.64"W x 2.44"TOverall Size: 40.16"L x21.65"W x6.10"HInlet/Outlet: 1.38"/1.57"Transmission oilcooler: 5/8-18UNFSurface Finish: Aircraft Grade Raw AluminumPetcoke Drain: OEM Style Brass Petcoke DrainRadiator Cap: CNC Machined Filler Neck And CapFan Details:Maximum Fan CFM: 2200±200FAN DIAMETER X HEIGHT X THICKNESS: 14.05" X 14.05" X 2.5"Number of Blades: 8 blades(Plastic)Maximum Fan RPM/Amp Draw: 2,250 rpm/12.70 ampsRelay Kit Instructions:RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Thermostat Relay Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.Part NumberManufacturer Part Number:2370,CU2370,Q2370, DPI2370,RA20060, RA20111, RAD2370

• For Chevy Silverado Suburban Tahoe Avalanche 1500, for 02-11 Silverado pickup, for 00-11 Chevy GMC Yukon/GMC pickup Sierra, for Hummer H2, for 03-09 Cadillac Escalade, 2000 99 01 03 04 05 06 07 08 09 10 12 13 14
• Core Size: 33.86"H x 17.64"W x 2.44"T; Overall Size: 40.16"L x21.65"W x 6.30"H; Inlet/Outlet: 1.38"/1.57"; Transmission oilcooler: 5/8-18UNF; Part Number: 2370, CU2370, Q2370, DPI2370, RA20060, RA20111, RAD2370
• High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install. Meticulously built to superior OE standards for a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed for Installation
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
